Explore the Lance Series sensor from full product, connector, body finish, base and 3D view perspectives.
Choose a fixed, motion-compensated, explosion-proof or combined configuration based on platform stability and safety requirements.
Fixed Installation Model

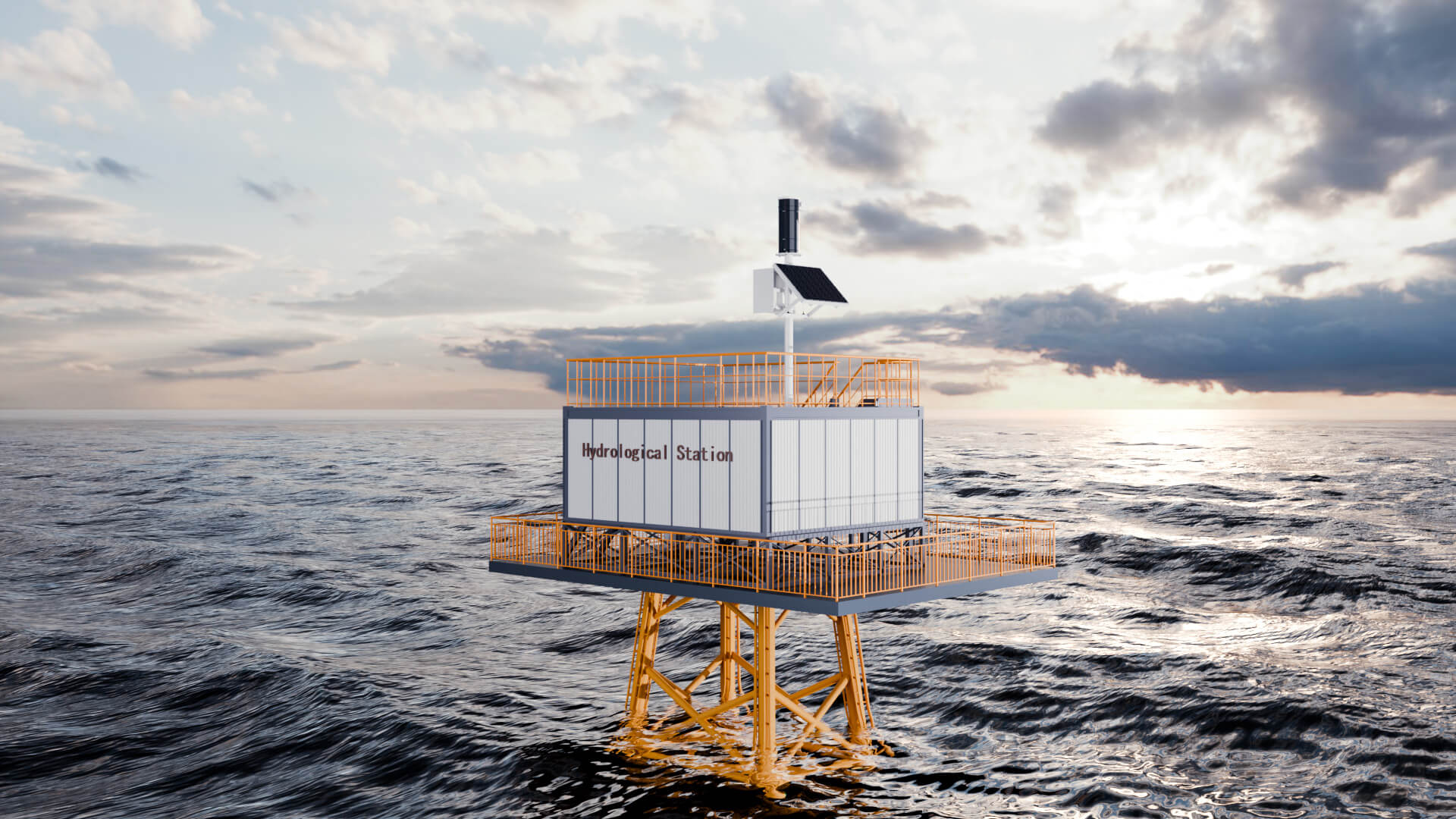

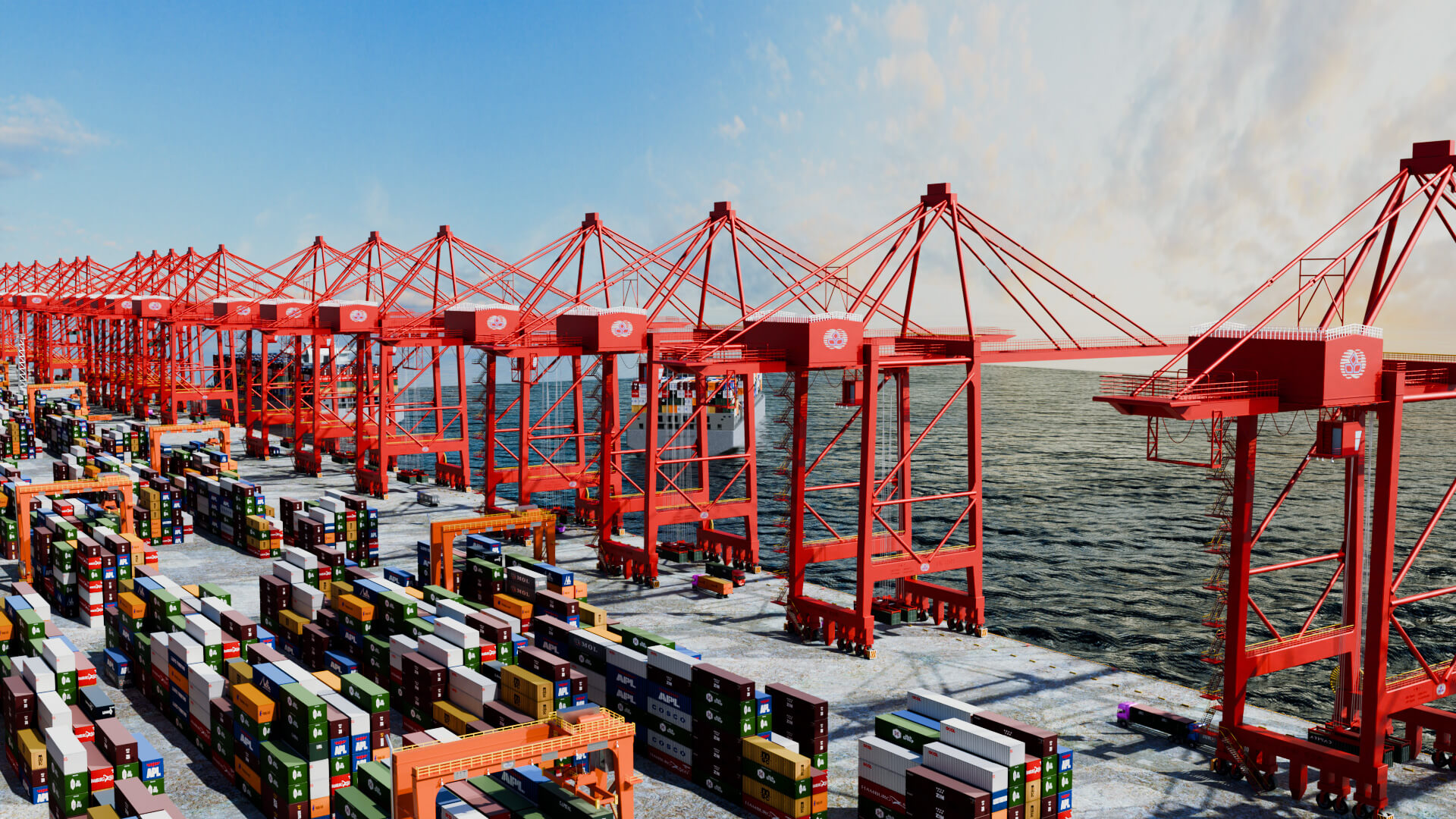

For shore-based stations, hydrological stations, ports, bridges and fixed offshore platforms.
Motion compensation model
For vessels, buoys and floating platforms where heave, pitch and roll may affect measurement.
Explosion-proof fixed model
For oil & gas platforms, hazardous areas and chemical terminals that require explosion-proof configuration.
Explosion-proof motion compensation model
For deployments needing both explosion-proof configuration and platform-motion compensation.
All measurement parameters are shown in a structured table, indicating specific ranges, accuracy levels, processing methods, and default output intervals.
| Parameter | Range | Accuracy | Processing | Output Interval |
|---|---|---|---|---|
| Heave | 1–0 m | ±3 mm | — | 10 Hz |
| Tide / Draft | — | ±1 cm | 10 s, 1 / 5 / 10 min | 10 s, 1 min |
| Wave Height | 0–0 m | ±3 cm | SWAP, every 20 min | 1 min |
| Wave Period | 1–00 s | ±50 ms | SWAP, every 20 min | 1 min |
| Motion2) | — | — | — | — |
| Heave Compensation | — | ±5 cm or 5% | — | — |
| Pitch & Roll | — | ±0.03° RMS | — | — |
2) Motion parameters include dynamic heave, pitch, and roll values based on integrated sensors.
Specifications are organized in a narrower, asymmetrical layout for easier scanning and project comparison.
Category 01
Category 02
Category 03
Category 04
Category 05
Category 06

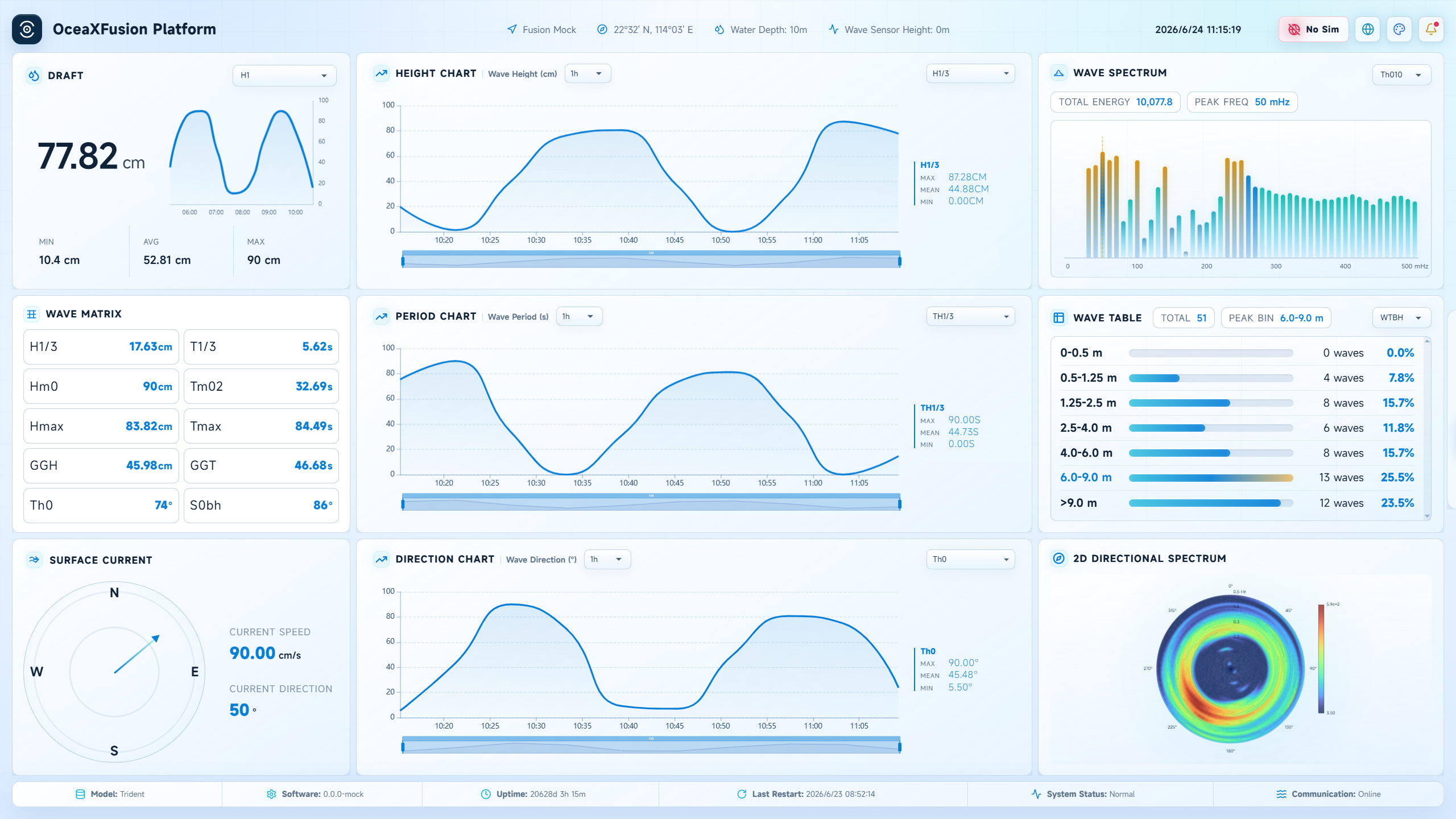

Lance Series can be paired with OceaXFusion Basic and OceaXFusion Pro for visualization, local storage, reports, cloud access and mobile monitoring.

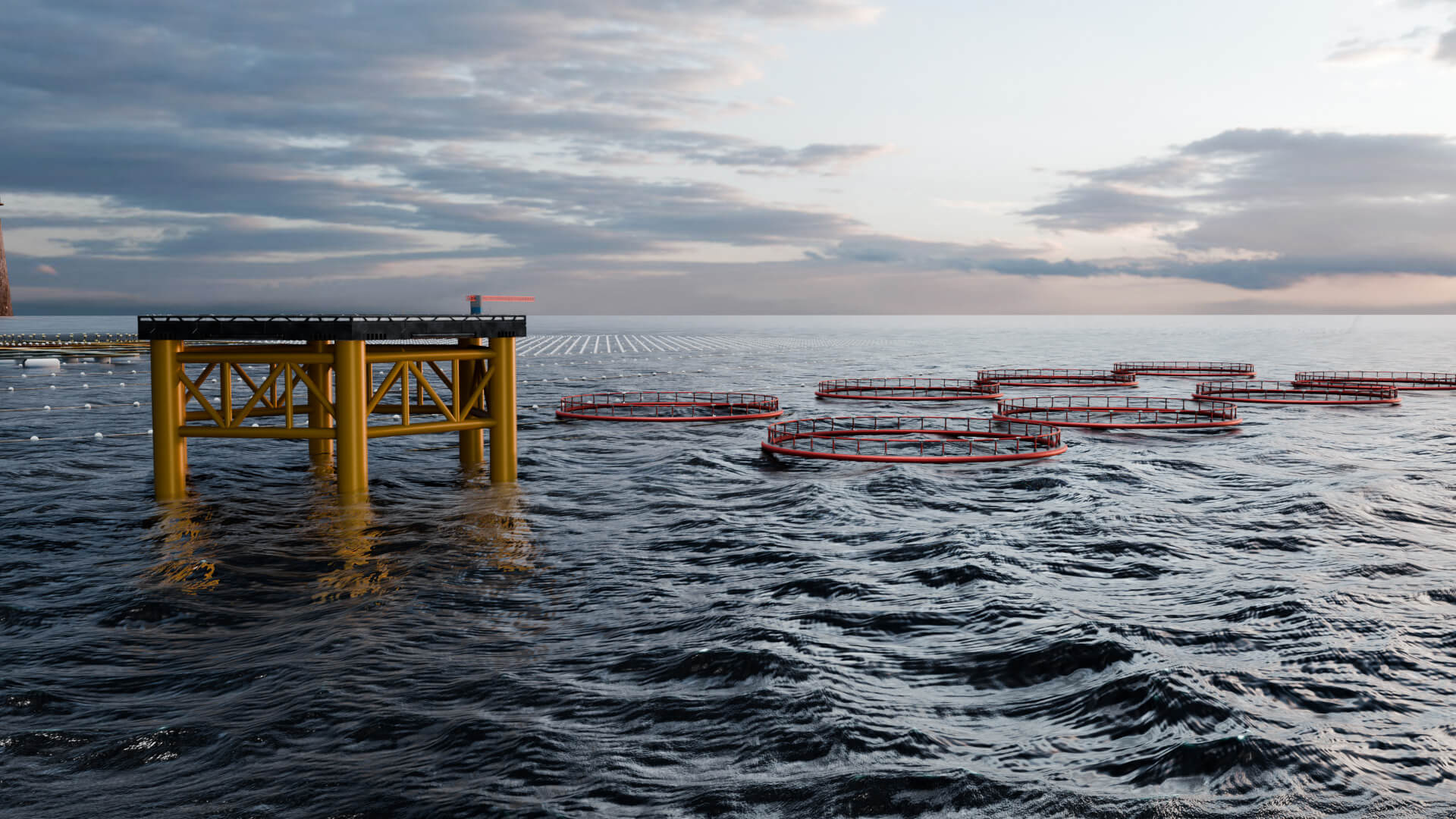

Lance Series supports different marine industries with non-contact level, wave and tide measurements for long-term operation.
Fixed scenarios are recommended for Lance 1000 / 1020, while floating or vessel-mounted scenarios are recommended for Lance 1010 / 1030.
Welded mounting and railing-clamp mounting for shore-based, pier, fixed-platform, vessel-mounted and floating-platform deployments.
Mounting bracket, expansion junction box, 4G communication module, BeiDou communication module, Starlink terminal, meteorological sensor, solar power kit and OceaXFusion license.
Lance 1000 is the fixed-platform basic model, 1010 adds motion compensation, 1020 is the explosion-proof fixed model, and 1030 supports both explosion-proof configuration and motion compensation.
Lance 1020 and Lance 1030 are designed for scenarios requiring explosion-proof configuration.
Yes. Lance Series can connect to OceaXFusion, OceaXFusion Cloud and OceaXFusion Mobile depending on project configuration.
For floating or vessel-mounted scenarios, Lance 1010 or Lance 1030 is recommended because they support motion compensation.
Talk to DynoceaX for model selection, deployment planning, software configuration and quotation support.
